3D Trophy Design Project
Overview
An entry for the Trophy Design Competition for perpetual use of the “Outstanding Electronics Engineer Awardâ€.
Features
- Gerber included for easy PCB manufacturing
- Modular components for easy assembly
Material Specifications
| Category | Specification |
|---|---|
| PCB | FR-4 - 2 Layer board 120x200mm 1.6mm thickness - ENIG Surface finish |
| Base | EBONY - Stained Walnut Wood |
Software
| Category | Software / Tool | Purpose / Functionality |
|---|---|---|

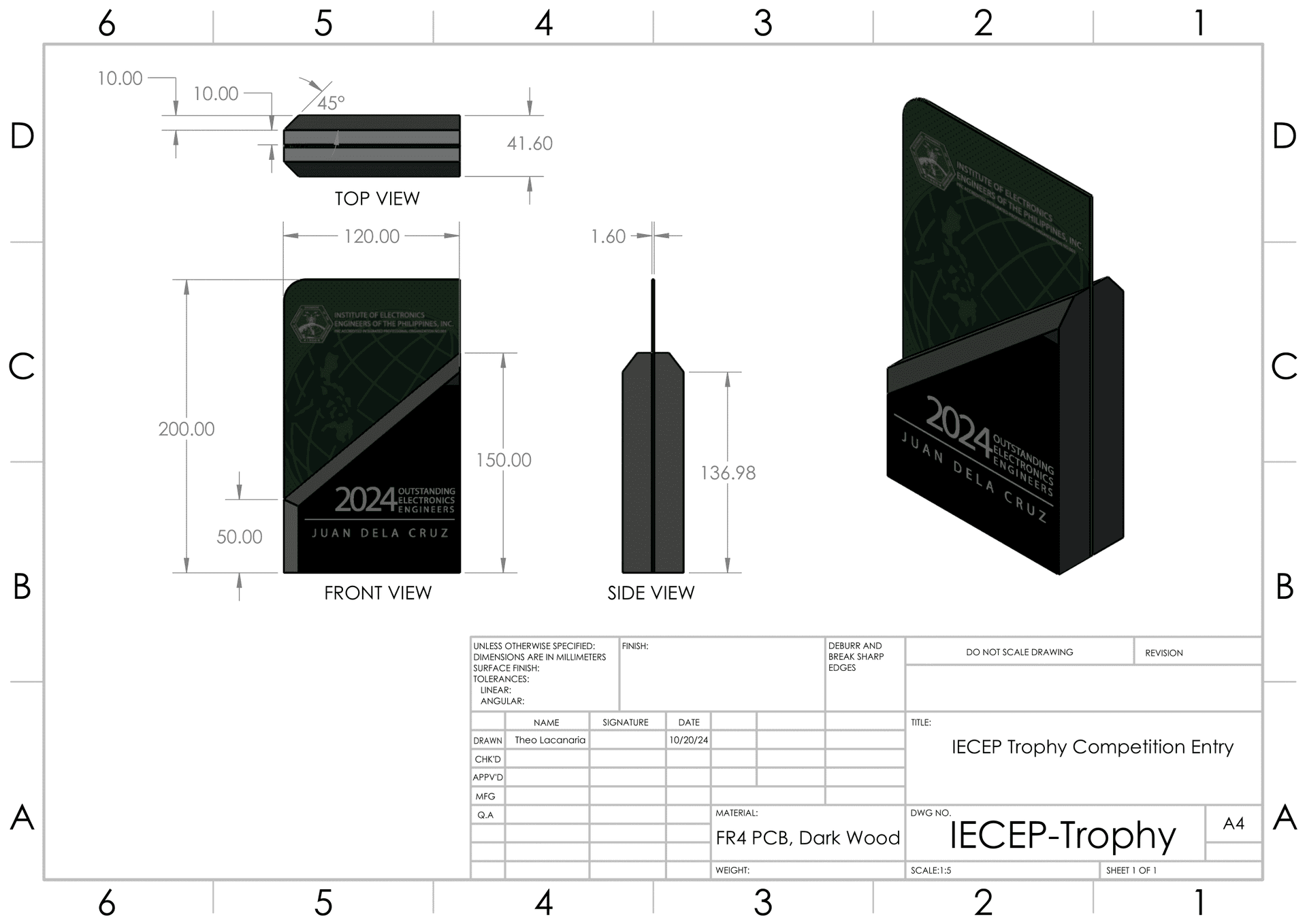

| 3D Modeling | SOLIDWORKS | Primary modeling software and techinal drawings |
| Rendering | PhotoView 360 | PhotoView 360 in SOLIDWORKS to render photo realistic images |
| PCB Design | KiCad | Designing board layout and generating gerber |

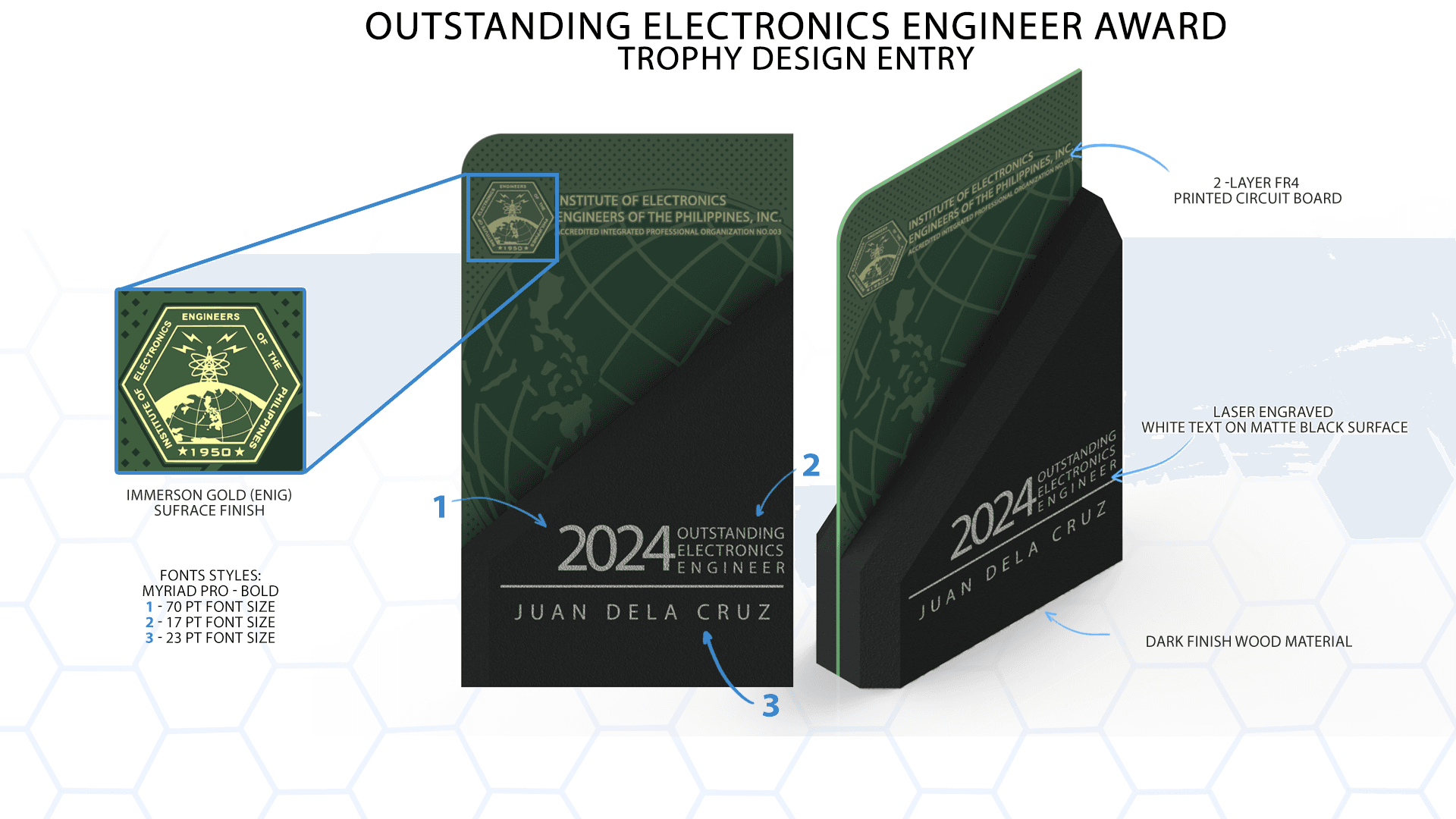

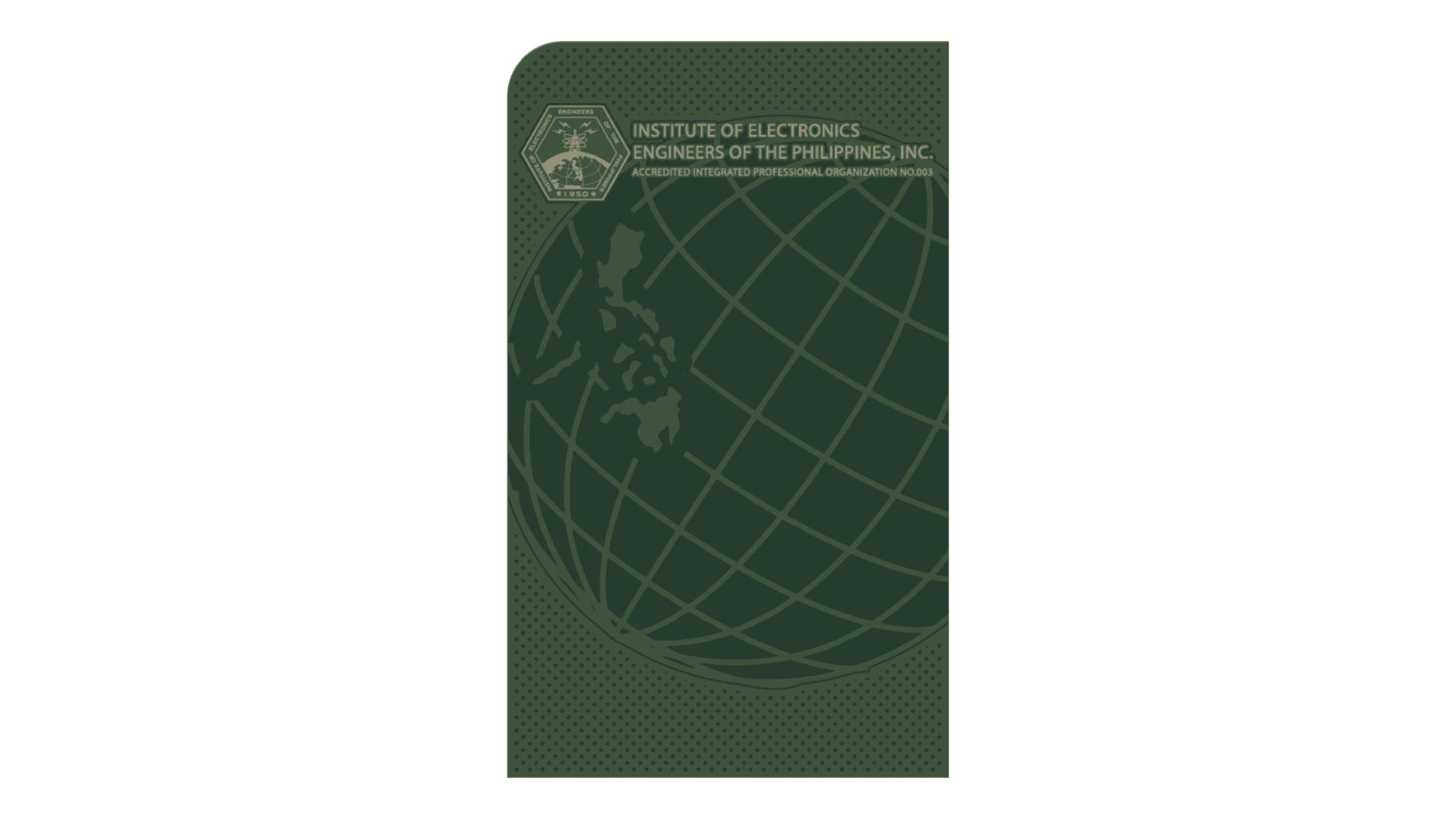

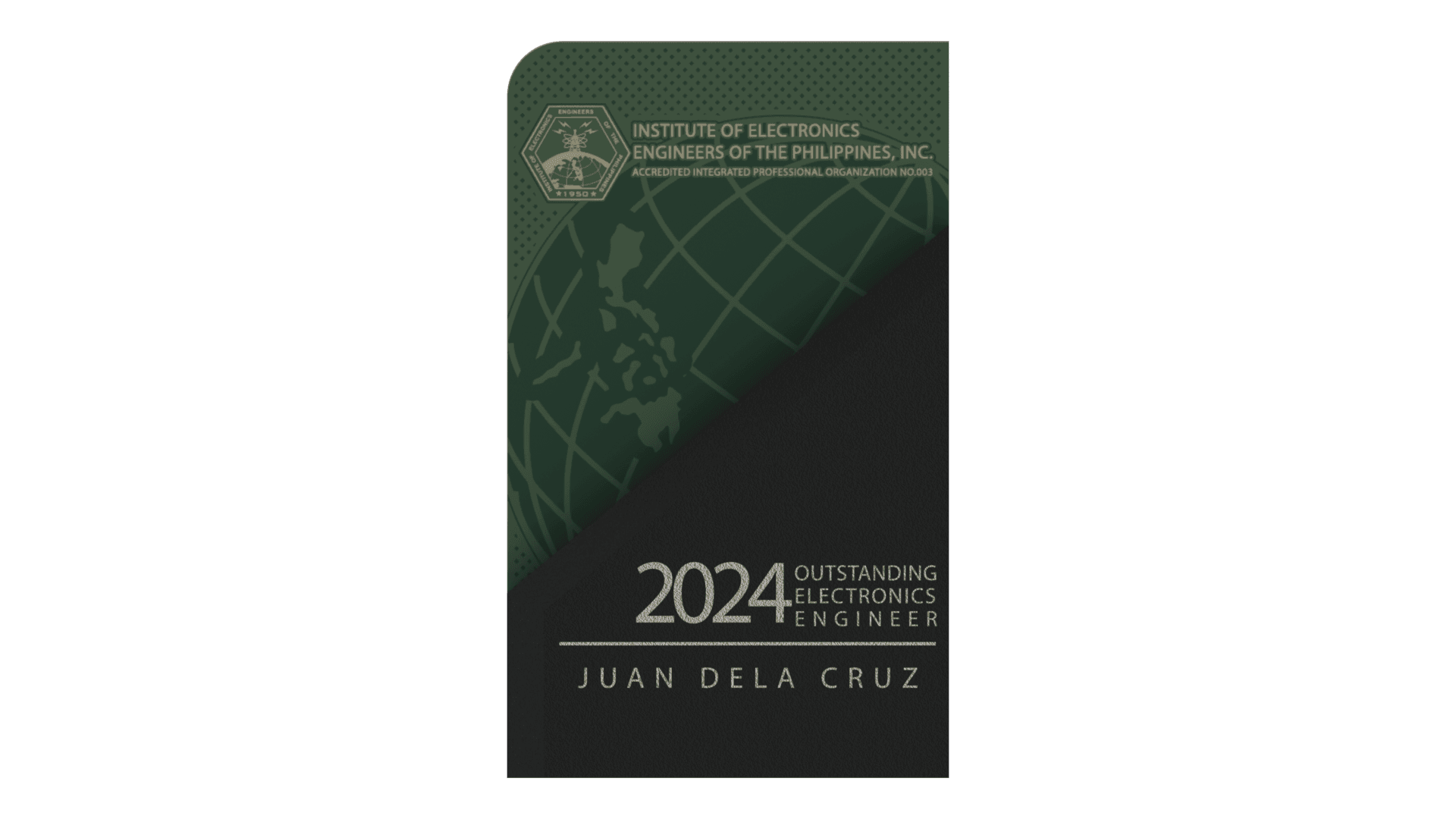

Gallery
